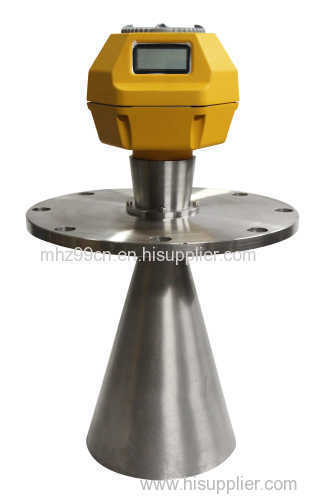

Intelligent radar level meter
| Place of Origin: | Chongqing, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Even if the condition is very complex, the presence of false echo, with the latest micro-processing technology and debugging software also can analyze
Suitable medium: liquid, especially with pressure and volatile liquid
Application: crude oil, light oil level measurement
Aluminum hydroxide liquid level measurement
Coal, limestone position measurement
Coke level measurement
Explosion-proof certification: Exib IIC T6 Gb/ Exd IB IIC T6 Gb
Measuring range: 35m
Line: horn antenna
Frequency: 6.3G
Temperature: (-40 ~ 250) ℃
The accuracy: ± 10mm
Process pressure: (-0.1 ~ 4) MPa
The signal output: (4 ~ 20) mA/HART
The display: LCD
Power source: two line (DC24V) / four line(DC24V/AC220V)
Repeatability: ± 1mm
Accuracy: < 0.1%
Shell: Aluminum
Connection: flange (optional)
